Description

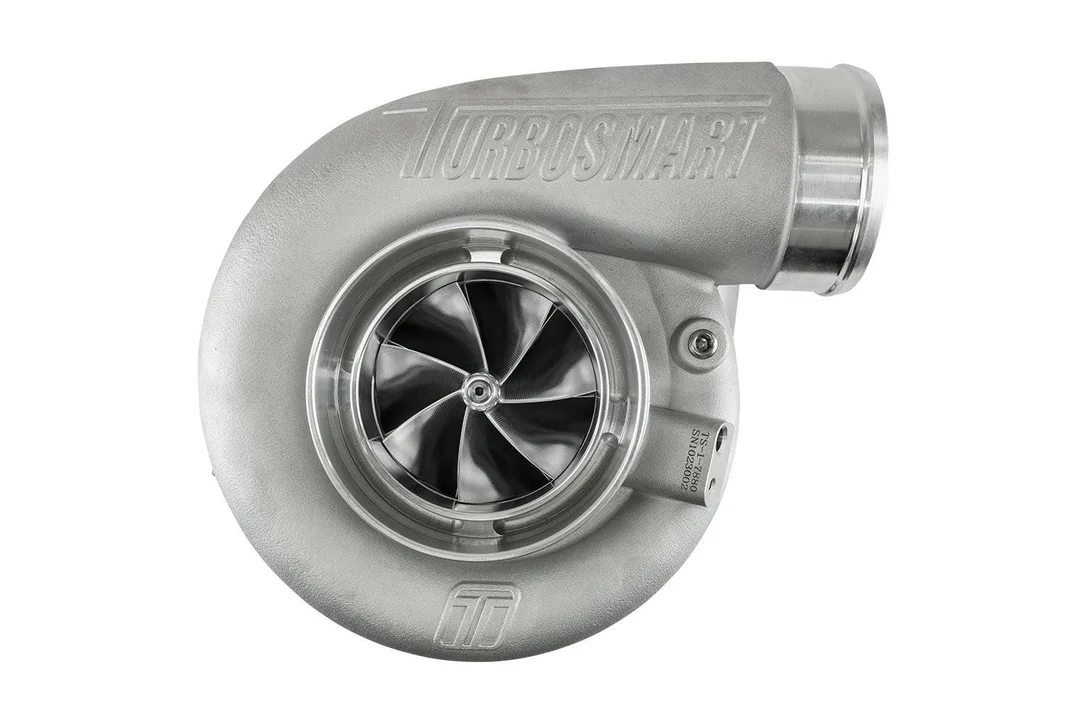

Turbosmart TS-1 Performance Turbo 6466 V-Band 0.82AR
The TS-1 series are oil cooled turbochargers with lightweight stainless steel investment cast turbine housings, a proprietary bearing and main shaft combination which will provide transient response with the type of performance, quality, reliability and support you’ve come to know Turbosmart for.
The low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds which is mated with a unique T14 Inconel turbine wheel to ensure power at high loads and flow is maintained.
Features
Unparalleled transient response
Aggressive aerodynamics with 7+7 splitter wheels
Lightweight 310s stainless steel investment cast turbine housings
Lightweight, Aluminum compressor covers
CFD driven designed housings for optimal AR’s and flow
T14 Inconel turbine wheel for extreme EGT’s
VSR speed balanced
Proprietary dual ceramic bearing system
Integrated Iron backplate on center housing
Specifications
Compressor Inlet: 4″ / 101.6mm
Compressor Inducer: 64mm
Turbine Inlet: V-Band (2.25″)
Turbine Exducer: 66mm
Turbine AR: 0.82
Turbine Outlet: V-Band (3.00″)
Weight: 6.06kg/13.3lbs
AN4 Oil Feed
Comes in the box:
1 x Turbosmart Performance Turbocharger
2 x Weld Flanges (Turbine inlet and outlet)
2 x V-Band Clamps (Turbine inlet and outlet)
1 x Oil drain gasket
Installation guide
