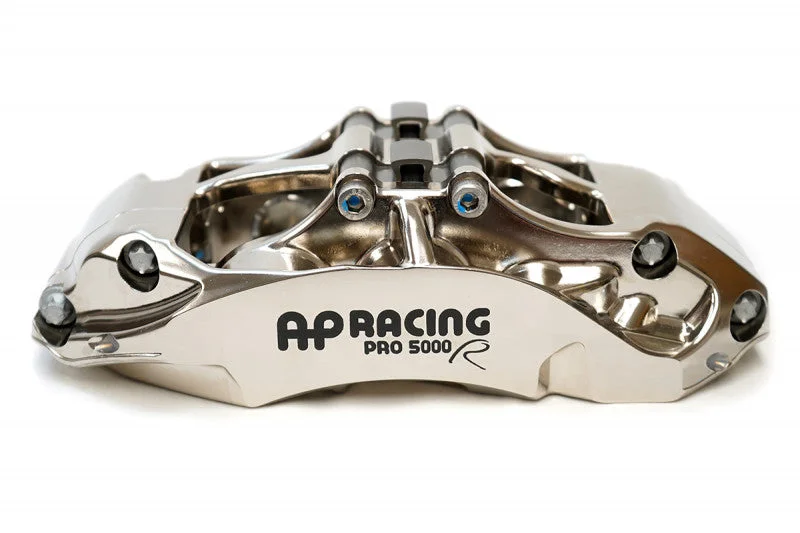

AP Racing CP9660 PRO 5000 R Brake Caliper (ENP)

Description

The Pro 5000 R calipers from AP Racing leverage extensive design expertise from various motorsport disciplines. Featuring a forged construction and the latest advancements from AP Racing’s innovative asymmetrical design concept, these calipers serve as an excellent entry-level option alongside the established Pro 5000+ range.

The Pro 5000 R series includes seven distinct variants, accommodating both 4 and 6 piston configurations, the 9660 iteration is 6 piston. Each caliper is radially mounted and engineered to work with full-depth brake pads.

Please note that calipers are handed and sold individually.

• Electroless Nickel Plated Design
• Superior Dynamic Performance
• Increased Stiffness
• Forged, Two Piece Aluminium Body
• Available in Anodised or Nickel Plated Surface Treatments
• Suits Ø380.0mm Max or 356.0mm Min x 36.0mm Max or 32.0mm  Min thick discs
• Stainless Steel Pistons
• High Temperature Seals (Liquid Only)
• 4lb Anti-Knockback Springs Fitted
• Stainless Steel Wear Plates

Part Numbers:

Anodised Surface Treatment

– RH = CP9660-2S4L
– LH = CP9660-3S4L

Nickel Plated Surface Treatment

• RH = CP9660-2S4LN
  – LH = CP9660-3S4LN

Pad Shapes

PFC – 7790

Pagid – 1904
